Gripper (Zinser)

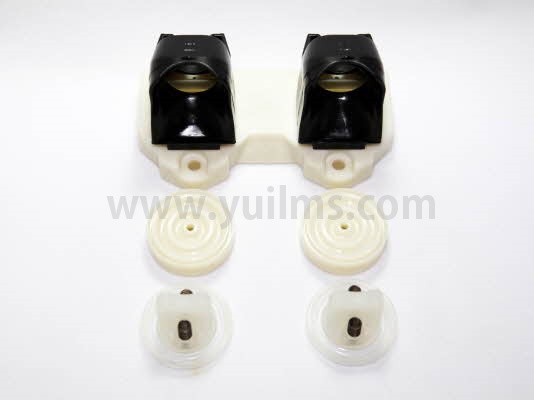

Zinser Ring Frame Spinning M/C Spare Parts - Gripper Assembly
Part No. YMS-ZG100
R/F Maker Zinser Ring Frame M/C in Auto-Doffing System
Application All kinds of Zinser R/F Models
Manufacturer YUIL MS (Made in Korea)


  ■  Product
   Gripper Assembly for Zinser R/F
  ■  Part No.
   YMS-ZG100
  ■  Application
   Applicable to all of Zinser R/F Spinning M/C in Auto-Doffing System
  ■  Size
   - Gauge : 70mm / 75mm

   - Inch :  6"  / 7" / 8" / 9" / 11"
  ■  Feature

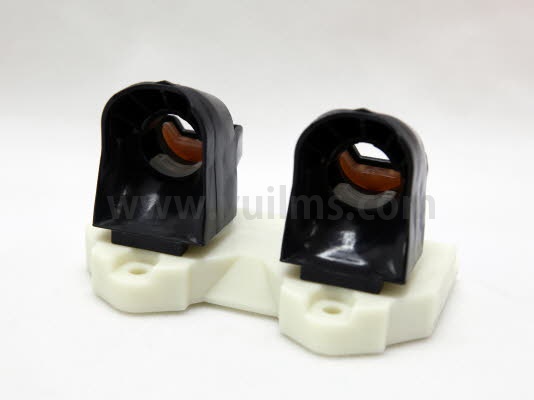

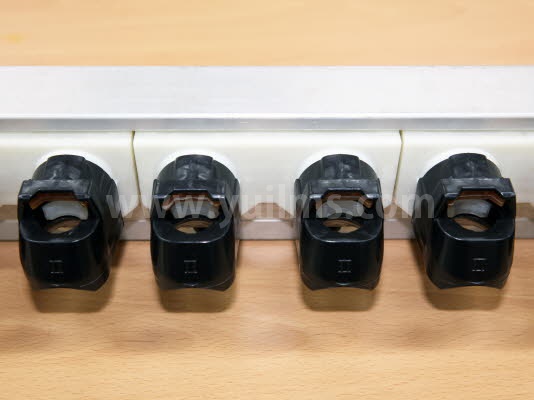

   - YUIL MS has developed new type as "Double Type" i.e. 1 Gripper covers 2 spindles.

   - "Double type" Gripper is even more stable.

   - Semi - permanent

   - No breakage regardless of overload on the Frame.

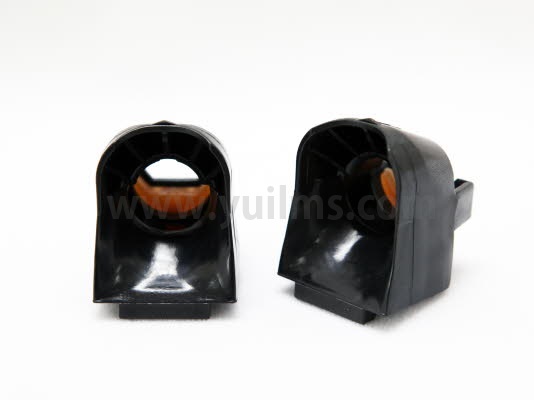

   - Only the Cap will be separated without any break in normal condition and it is able

      to Re-Use, since YUIL MS Cap is Detachable type.

   - Required time to Re-position the separated Cap will be within 3 seconds by anyone.

   - It is designed to minimize the problem on gauge.
